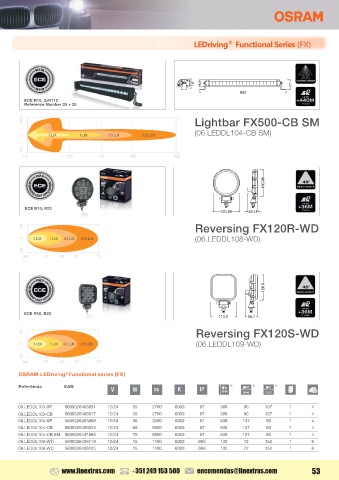

Page 55 - CATÁLOGO LINEXTRAS 2023

®
LEDriving Functional Series (FX)

R112

15° 54 77
R112
655
ECE R10, 2xR112
Reference Number 25 + 25
LIGH AM
120 Lightbar FX500-CB SM
(06.LEDDL104-CB SM)
0 3 LUX 1 LUX 0.5 LUX 0.25 LUX

-120
[m] 255 440 630 890

R23
130.98 45°
REVERSING LIGHT APPLICATION

UP TO
ECE R10, R23 +36M
120.89 48.41 (1 LUX)
GHT BEAM
Reversing FX120R-WD
30
(06.LEDDL108-WD)
0 3 LUX 1 LUX 0.5 LUX 0.25 LUX
-30
[m] 21 36 52 73

R23
126.6 45°
REVERSING LIGHT APPLICATION

UP TO
ECE R10, R23 +36M
113.2 55.7 (1 LUX)
GHT BEAM
Reversing FX120S-WD
30
(06.LEDDL109-WD)
0 3 LUX 1 LUX 0.5 LUX 0.25 LUX

-30
[m] 21 36 52 73
®
OSRAM LEDriving Functional series (FX)

Referência EAN IP 1) w 1) d 1)

06.LEDDL103-SP 5609326403851 12/24 35 2700 6000 67 388 90 137 1 4

06.LEDDL103-CB 5609326406517 12/24 35 2700 6000 67 388 90 137 1 4

06.LEDDL104-SP 5609326403868 12/24 36 3500 6000 67 638 137 90 1 4
06.LEDDL104-CB 5609326406524 12/24 68 5500 6000 67 638 137 90 1 4
06.LEDDL104-CB SM 5609326441884 12/24 70 5500 6000 67 638 137 90 1 4
06.LEDDL108-WD 5609326436118 12/24 15 1100 6000 69K 132 72 152 1 8
06.LEDDL109-WD 5609326436125 12/24 15 1100 6000 69K 132 72 152 1 8
